Show Room P2.0mm Mini GOB LED Display With Aluminium Cabinet

Show Room P2.0mm Mini GOB LED Display With Aluminium Cabinet

P2.0mm Mini GOB LED Display

Show Room Mini GOB LED Display

Show Room GOB LED Screen

Show Room P2.0mm Mini GOB LED Display With Aluminium Cabinet Images

Home > GOB Mini LED Display >

Product Categories

Shenzhen LCS Display Technology Company., Ltd

Contact Now

Name: Show Room P20mm Mini GOB LED Display With Aluminium Cabinet
Brand: BOE
Price: 100.00 USD

Buy cheap Show Room P2.0mm Mini GOB LED Display With Aluminium Cabinet product

Brand Name : BOE

Model Number : P2.0

Certification : CE ,FCC,CCC

Place of Origin : China

MOQ : 100pcs

Price : 100.00 usd

Payment Terms : T/T

Supply Ability : 3000pcs

Delivery Time : 5days

Packaging Details : 580*370*400mm

Item : P2.0 MINI LED Module GOB

Cabinet Size : 640mm*480mm

Resolution : 320*240

Driving Method : 1/32 Scan

LED Lamp : SMD 1515

Dot Density : 250000

Refresh Rate : 3840hz

Power : 144W

Contact Now

Show Room MINI LED Display 2.0mm Pixel Pitch SMD Alum Cabinet GOB 640mm*480mm FCC Certificated Shenzhen Factory

P2.0 Mini led display size:3.2m*1.6m

SPECIFICATION

Model.PN NO: P2.0 32s SMD INDOOR MODULE-320*160MM

REV NO:KP14020M-N00-S550

Description:

■ 640mm*480mm SMD Indoor module

■ Lamp:HUAGUANG-1515

■ Driver IC:FM6353

Rrfresh:3840hz

Shenzhen LCS Electronic Co.,Ltd
Technology department	Quality department	Marketing department

Show Room P2.0mm Mini GOB LED Display With Aluminium Cabinet

P12.0 SMD indoor

Description:

Size: 640mm*480mm

Resolution: 320dots*240dots

Driving Method: 1/32 Scan

Module brightness: 650nit

Display Fresh requency: ≥3840hz

Working environment: Indoor

Parameter:

Pixel pitch	2.0 mm
LED Lamp type	3in1RGB Huaguang 1515
Cabinet size	640mmx480mmX60mm
Module Resolution	320*240
Pixels Density	250000 Dots/㎡
Brightness	650nit
Scan Type	1/32 Scan
Frame Rata	60Hz
Fresh Requency	≥3840hz
Voltage Input	185~240Vac
Power Input	144W
Cabinet Materials	Alum Die-Case
Led Display Weight (*Cabinet size:640480mm**)	8.0kg±0.05 kg
Working Temp	-20℃ to +60℃
Horizontal View Angel	>140degree
Hub Connecting	HUB75
Install Way	Fixed on the wall

Refresh:960hz & 3840hz

Show Room P2.0mm Mini GOB LED Display With Aluminium Cabinet

Refresh:960hz Refresh:3840hz

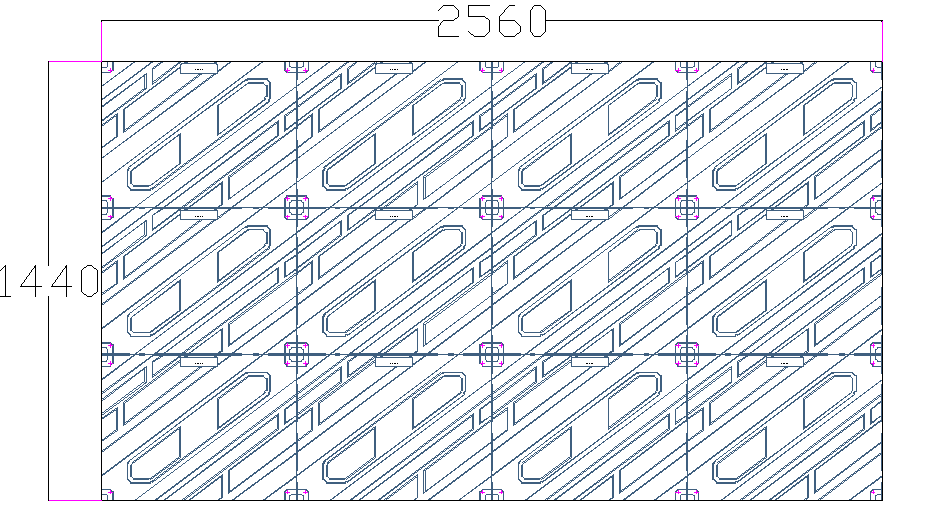

Cabinet Install Drawing:

Show Room P2.0mm Mini GOB LED Display With Aluminium Cabinet

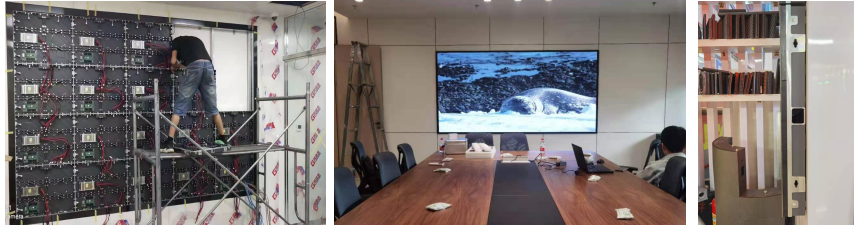

Project Install:

Show Room P2.0mm Mini GOB LED Display With Aluminium Cabinet

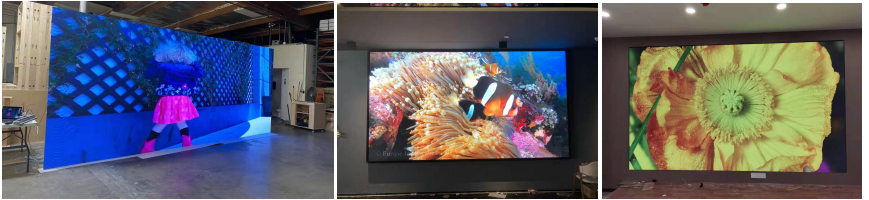

Project Case:

Show Room P2.0mm Mini GOB LED Display With Aluminium Cabinet

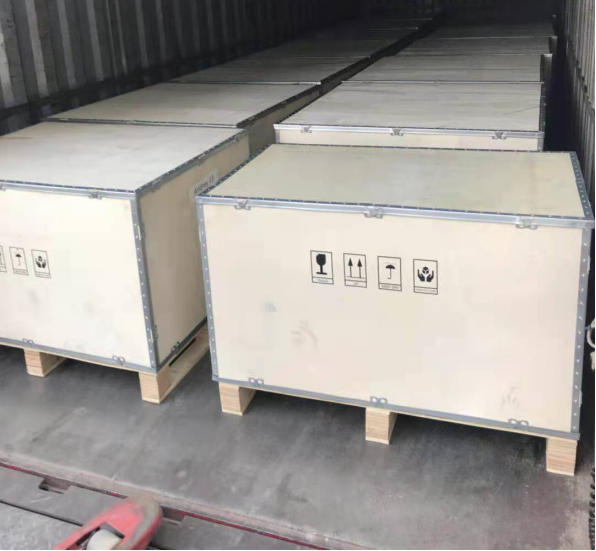

Package:

● Box size:740mm*790mm*640mm

● Package quantity:8PCS

● Weight:95Kg

Show Room P2.0mm Mini GOB LED Display With Aluminium Cabinet

Web:

WWW.LEDLCS.COM

www.ledvideo-screen.com
